1970 - 1974 Firebird G-Force Transmission Crossmember, TH350, Muncie, Powerglide, T-10

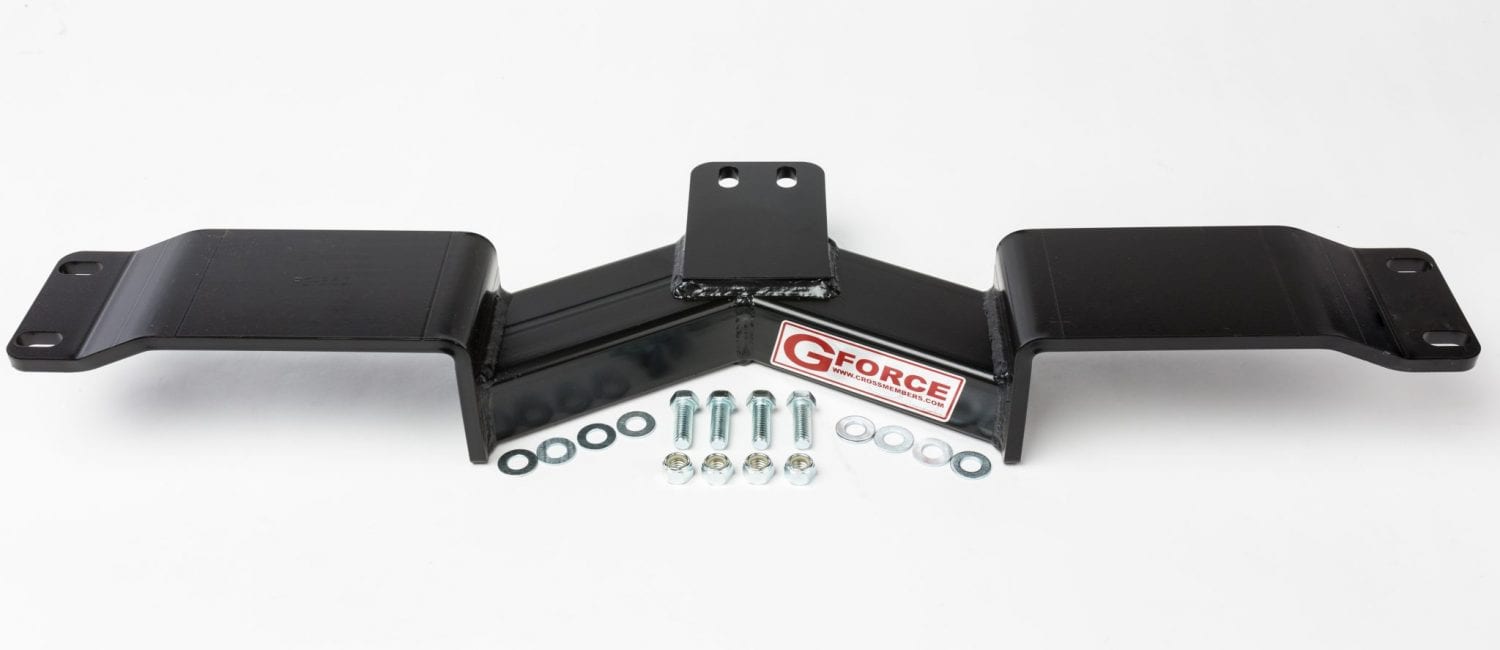

New super heavy duty crossmember for your overdrive transmission. Works great for all TH-350, Powerglide, Muncie M20, M21, M22, T-10, Super T-10 and Saginaw transmissions. Finished in a black powder coat. Includes mounting hardware. The best quality crossmember we've found available. Transmission Mount is purchased separately, and we recommend a Polyurethane Transmission Mount.

TRA-810 installation notes:

This crossmember is installed with the G Force label facing the rear of the vehicle. A second determining feature is crossmember center tube has a 1/2″ drain slot located on the bottom and on the passenger side next to the hump weldment.

The crossmember is installed so that the exhaust clearance humps are closed on the top and open on the bottom.

To utilize the provided 7/16 hardware it is necessary to enlarge the holes in the frame rails. If the installer chooses to utilize the stock size 3/8 hardware, it is strongly recommended that the installer obtains Grade 8 fasteners and washers to compensate.

Finished in a durable black-satin powdercoat paint. Includes new high-strength, Grade #8 mounting hardware. Purchase transmission mount separately. A Polyurethane transmission mount recommended.

( Note: The distance between crossmember frame holes is approximately 30-1/2″. Measure your frame or crossmember to insure proper selection.)

Fits all 70, 71, 72, 73, and 74 Firebird models with a TH-350, Powerglide, Muncie M20, M21, M22, T-10, Super T-10 or Saginaw Transmission.

PART NUMBER: TRA-810

•

1967-1969 ( NOTE: DISTANCE BETWEEN CROSSMEMBER FRAME HOLES IS APPROXIMATELY 30-3/8”. MEASURE YOUR FRAME OR CROSSMEMBER TO INSURE PROPER SELECTION)

THIS CROSSMEMBER IS INSTALLED WITH THE G FORCE LABEL FACING THE REAR OF THE VEHICLE. A SECOND DETERMINING FEATURE IS CROSSMEMBER CENTER TUBE HAS A 1/2" DRAIN SLOT LOCATED ON THE BOTTOM AND ON THE PASSENGER SIDE NEXT TO THE HUMP WELDMENT.
THE CROSSMEMBER IS INSTALLED SO THAT THE EXHAUST CLEARANCE HUMPS ARE CLOSED ON THE TOP AND OPEN ON THE BOTTOM.
TO UTILIZE THE PROVIDED 7/16 HARDWARE IT IS NECESSARY TO ENLARGE THE HOLES IN THE FRAME RAILS. IF THE INSTALLER CHOOSES TO UTILZE THE STOCK SIZE 3/8 HARDWARE, IT IS STRONGLY RECOMMENDED THAT THE INSTALLER OBTAINS GRADE 8 FASTENERS AND WASHERS TO COMPENSATE.
