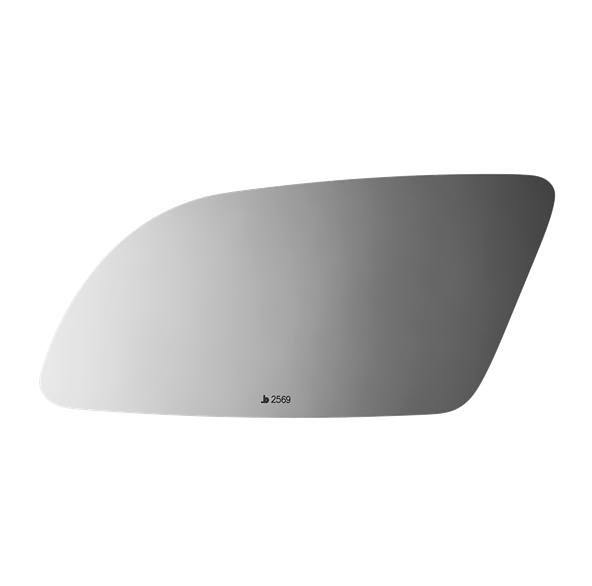

1982 - 1992 Firebird and Trans Am LH Exterior Door Mirror Replacement Glass, 3" X 5-1/2"

LH Door Mirror Replacement Glass for 82-92 Third Gen Firebird and Trans Am's. Our mirror replacements provide a solution when just the mirror glass is broken. Our mirror replacements are an economical and quality alternative to high-priced OEM mirror assemblies. Fits left hand drivers side. Replaces original GM. This 3rd Gen 1982 - 1992 Mirror Glass measures 3 X 5-1/2 inches. See all that you've been missing! This is the correct mirror glass to replace your broken or missing originals. This glass is correct for some 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, and 1992 models.

Be sure to check measurements, GM had several suppliers and style. See Part# EXM-78 for the matching RH passenger side.

• Diagonal Inches: 7
• Vertical Inches: 3
• Horizontal Inches: 5 1/2

Note: This item is the glass only, no glue or tape included for install. This is the LH Driver Side Replacement Mirror Glass only.

PART NUMBER: EXM-77

• Vertical Measurement

  Measure your mirror glass. Measure vertically from top mirror edge to bottom mirror edge.



  Horizontal Measurement

  Measure your mirror glass. Measure horizontally from left mirror edge to right mirror edge.


  Diagonal Measurement

  Measure your mirror's longest diagonal measurement. This mirror's longest measurement happens to be from the inside upper to outside lower.



STEP 1: REMOVE ALL BROKEN GLASS: Remove all existing broken glass and adhesive from the mirror's plastic frame and backing plate with a putty knife.
STEP 2: CLEAN & TEST FIT: Thoroughly clean backing plate with rubbing alcohol. Clean mirror with glass cleaner. Test fit your Replacement Mirror Glass before proceeding to the next step.
STEP 3: APPLY ADHESIVE: Apply Silicone Adhesive or Redi Stick™ adhesive patches to the backing plate or mirror replacement, if applicable. TIP: Install in a warm/dry environment. TIP: In addition to adhesive patches, you may supplement silicone or urethane.
STEP 4: INSTALL Replacement Mirror Glass: Align and press mirror replacement to the backing plate with firm yet gentle pressure.
STEP 5: CLEAN UP: Clean your installed Redi Cuts® mirror replacement with glass cleaner
